100V~240V AC Industrial LCD Displays , HD Industrial LCD Screens interface
Description:
- Ultra-slim design,convenient use,delicate appearance.
- Industrial A+ grade LCD panel
- High contrast,High brightness,vivid image layout,bets details performance.
- Auto eliminate blur function,long life span.
- Auto adjust VGA image reproduction rate.
- Multiple date-image adjustment circuit,low image distortion.
- Intelligence temperature control fan design,green and quiet.
- Wide visual angle 178°,aspect ratio 4:3
- Rich signal input,output interfaces,adapted in the different environments.
- Appling the latest 3D digital image decode chipset,the latest DNR,image clear,clean and vivid.
- Intensive the IR receiver,support the IR remote to modify the monitor parameters.
- Build-in stable power,low consumption,long life span>60000hours
Applications:
Stock exchanges, Traffic control centers, Airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc.
Specifications:
Technical Parameter for LCD Panel
| product | 17" HD LCD Monitor |
| model | MJHD-170 |
| Screen type | 17" TFT LCD |
| Display area | 340(W)×273(H) |
| Aspect ratio | 4:3 |
| resolution | 1280×1024 |
| Number of colors | 16.7M |
| Dot pitch | 0.264(H)×0.264(V) |
| brightness | 500cd/㎡ |
| contrast | 1000:1 |
| Viewing angle | 178°/178° |
| Response time | 5ms |
| HF | 31k~60kHZ |
| VF | 56~75HZ |
| color system | PAL/NTSC/SECAM |
| Signal interface | Input:2*BNC,1*VGA,,1*,1*AUDIO output:1*BNC |
| voltage | AC 100V~240V |
| On mode | ≤35W |
| Standby model | ≤3W |
| Working temperature | 0°~50° |
| humidity | 20%~80% |
| Life | 60000H |
| color | Black/white/customized |
| installment | Desktop/wall mounted |
| certification | CE/3C/FCC/UL |

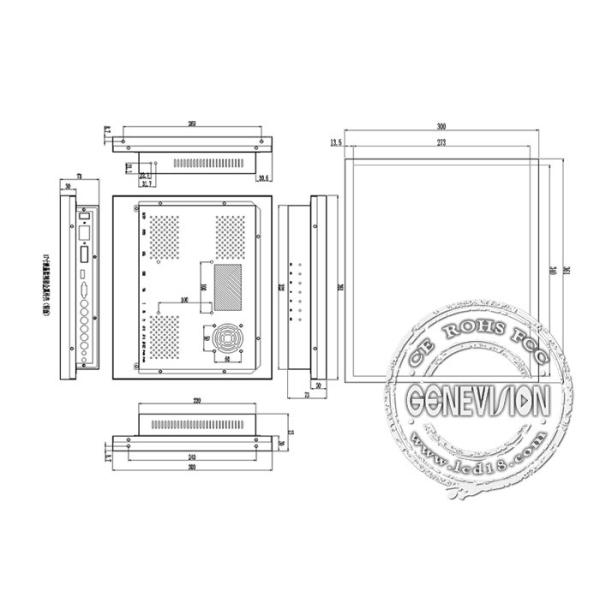

| Dimension | 361×300×66 |
| Net weight | 5.8KG |
Competitive Advantage:
Wide voltage range,AC 110V~240V,industrial grade design,can be used in harsh environment.
